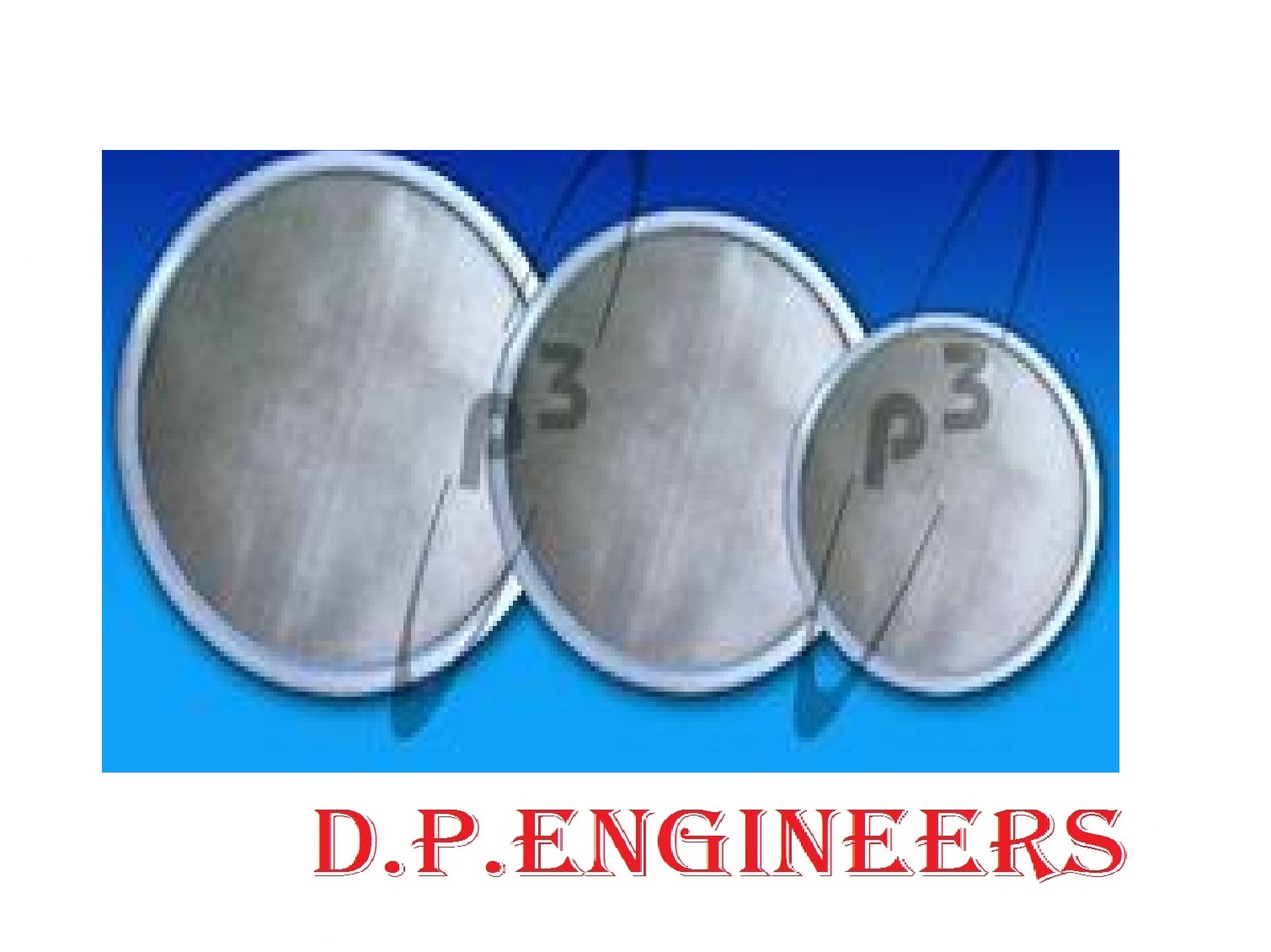

Silicon Moulded Sifter Sieve

 Silicon Moulded Sifter Sieve

We offer Silicon Moulded Sifter Sieve. These are available in various sizes from 12" to 48" diameter. The most common size used is 20" diameter (550 mm) & 30" diameter (750 mm). The silicon which is of food grade quality, transparent in appearance, non-toxic is moulded on the stainless steel ring. These are available in riveted and special non-riveted design, the mesh sizes varies from 4 mesh to 500 mesh with a. S. T. M & b. S. S standard being certified on 90 x microscope, with complete set of certificates, the sieves without silicon moulding are also available.
Features:

Reasonable price

  • Quality material
  • Various sizes




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Sifter Sieves

 Mechanical Sifter Sieves: - Sieves for mech. shifter size of 20” and 30” and mesh size as per clients choice. In big sizes supports are provided for the rigidity and stiffness.



We are looking queries from Sri lanka, Nepal, Bangladesh,




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

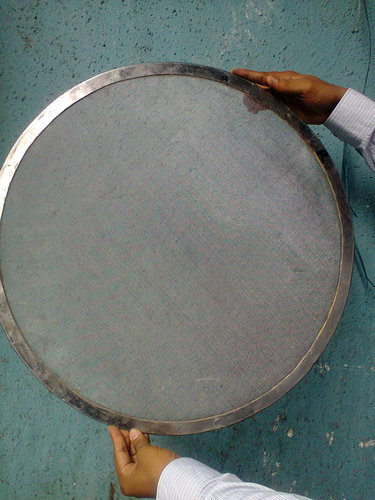

SS Sifter Sieves

 We manufacture SS Sifter Sieves in SS 304 and SS 316 with Silicon Molded / without Silicon molded


Sifter Sieves: SSl Sifter Sieves made out from SS 304/316

Size:

  • Dia 20"- 4 Mesh To 200 Mesh
  • Dia 30"- 4 Mesh To 200 Mesh
  • Dia 48"- 4 Mesh To 200 Mesh




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

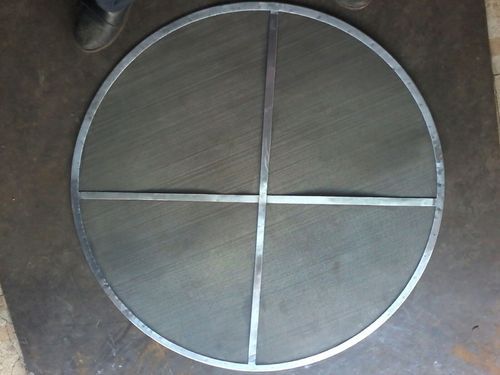

Pharma Sifter Sieves

 We are engaged in offering our clients with a qualitative range of Pharma Sifter Sieves. These are offered in diameters of 20, 30, 40, and 48 inches and also as per the drawings from 4 meshes to 500 meshes with additional cross support of 18 SWGS. Our range is cross welded to the bottom of the ring with additional sieves. This supports sieves as per customer specifications and we also silicon mould sifter sieves using SS 316/304.




Mesh Nos

Mesh Nos
Indian Std

Microns
4 5 4.00mm 4000
5 6 3.35mm 3353
6 7 2.80mm 2812
7 8 2.36mm 2411
8 10 2.00mm 2057
10 12 1.70mm 4000
12 14 1.40mm 1405
14 16 1.18mm 1204
16 18 1.00mm 1204
18 20 0.850mm 850
22 25 0.710mm 710
25 30 0.600mm 600
30 35 0.500mm 500
36 40 0.425mm 420
44 45 0.355mm 355
52 50 0..300mm 300
60 60 0.250mm 250
72 70 0.212mm 210
85 80 0.180mm 180
100 100 0.150mm 150


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)
